Roofing Materials / Asphalt / SBS FR Torch
SBS FR Torch
An ASTM D6163 Grade G fire-resistant cap sheet offering improved safety, UV resistance and extended service life. Suitable for hot-applied, cold-applied or mechanically fastened roofing assemblies.
System
Overview | Options | Documents | Accessories
Overview

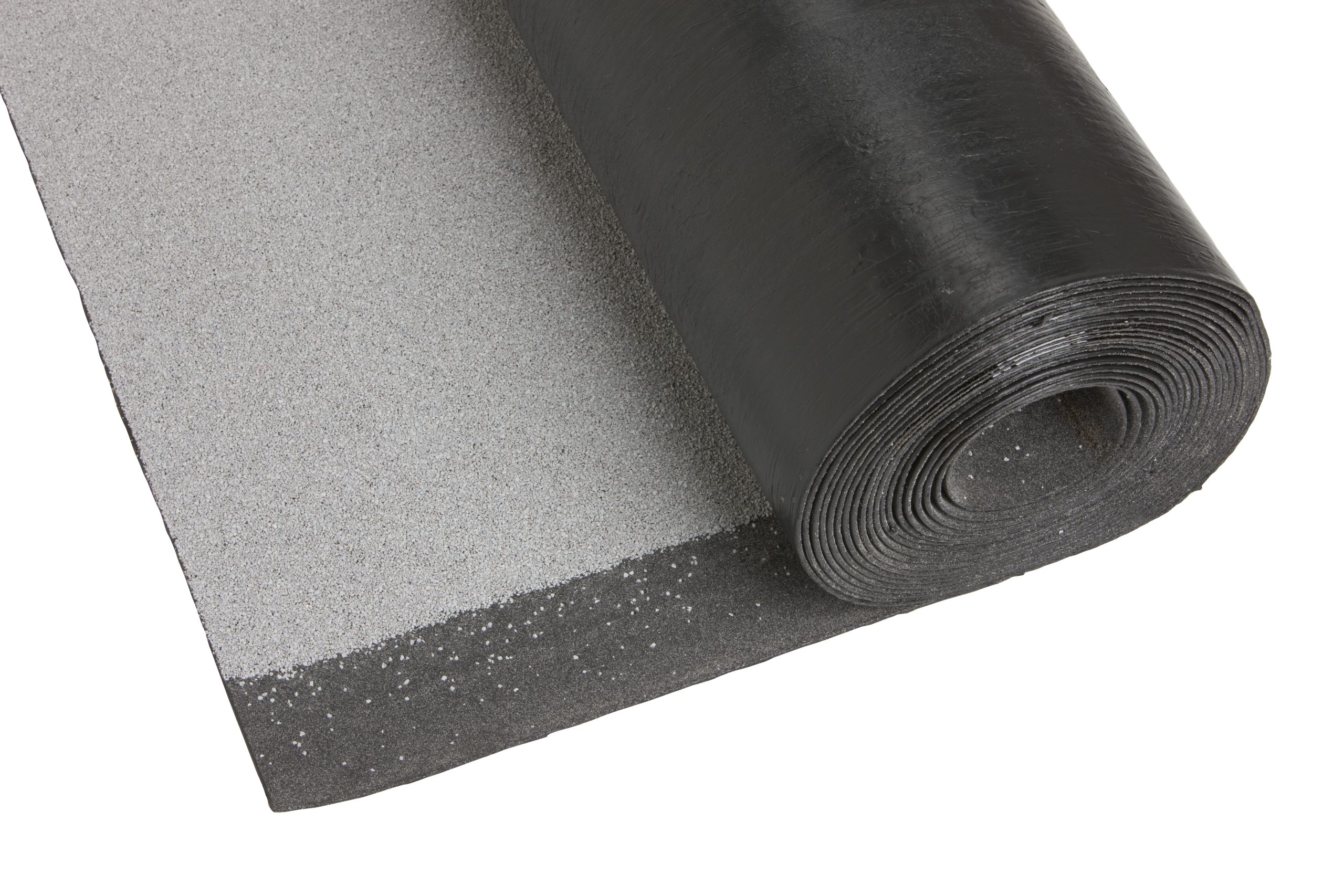

SBS FR Torch is a modified bitumen membrane featuring a blend of SBS (Styrene-Butadiene-Styrene) rubber polymer and high-quality asphalt reinforced with a 190 g/m2 (3.89 lb/100 ft2) strong non-woven polyester mat enhanced with continuous fiberglass yarns. The addition of SBS rubber polymer and fire-retardant materials optimizes the asphalt blend to increase its natural waterproofing properties, adding elongation, elasticity, flexibility and resistance to fire. The fiberglass-reinforced polyester mat provides strength and stability to the product, yielding a membrane that resists natural forces and other factors on the rooftop. SBS FR Torch is designed specifically as the top layer for use with GenFlex SBS Modified Bitumen Systems and has the bottom surface covered with a poly burn-off film to aid in heat welding applications. GenFlex SBS Systems are ideal for use on both new construction and re-roofing projects.
